Eilersen Digital Load Cells

Hygienic Weighing Solutions for Pharma, Biopharma, and More

Precision, Hygiene, and Durability—Redefined

Acuity proudly offers the full line of Eilersen digital load cells, designed for applications where accuracy, hygiene, and regulatory compliance are mission-critical. From mobile tote systems to tank weighing Eilersen’s digital load cells deliver robust, drift-free performance across an extensive range of uses.

Engineered with the demands of sanitary and high-purity industrial processes in mind, they feature:

  • Accuracy up to OIML C6
  • EHEDG compliance for easy cleaning in hygienic environments
  • Optional ATEX and IECEx certifications for hazardous environments
  • Digital-capacitive technology for robustness and long term accuracy without frequent recalibration
  • Stainless steel, IP68-rated construction for hygienic weighing installations, installations in tough environments and general process weighing (IP69K also available on select models)

Whether managing a pharmaceutical process or other critical application, Eilersen load cells provide reliable, compliant performance you can trust.

Why Digital Load Cells?

Digital-capacitive load cells overcome the limitations of traditional strain-gauge load cells. Here are just a few of the unique features and benefits of Eilersen Load Cells:

  • No signal drift—ensuring long-term measurement stability
  • Overload tolerance up to 1,000% of rated capacity
  • Pre-calibrated for quick and easy installation and commissioning
  • No lock out, protection blocks, or recalibration when moving mobile weighing systems
  • Load cell damaged? Replace a single load cell with minimal disruption and without rerunning cables
  • System-aware digital intelligence—each load cell reports diagnostics information directly to your control system with no extra hardware needed

These features, and many others, make Eilersen load cells uniquely suited for demanding life-sciences applications.

Featured Products: Eilersen Load Cell Portfolio

Beam Load Cell

eilersen digital capacitive load cell
Beam Load Cell BL (BL-Ex)
The Eilersen BL Series Digital Capacitive Beam Load cell is the cornerstone of the Food, Pharma, and Hygenic offering. It offers an extremely robust design that provides for a physical connection between the load and the weighing platform without requiring any external mounting kits or protection devices. Installations include mobile totes, Single-Use Mixers, mobile vessels, and any other application that may be subject to external side-loads or shock loads. The newer smooth-bellows design makes the unit simple to clean and minimizes area for bacterial entrapment. Versions to meet ATEX and IECEx requirements are available.

DLC Compression Load Cell

eilersen digital beam load cell
Compression Load Cell DLC (DLC-Ex)
The new DLC digital capacitive compression load cell is based on the time-tested CL series, and features Patent-Pending integrated lift off protection. With capacities ranging from 50kg to 5000kg and accuracies of 0.10%, 0.05%, and 0.025%, Eilersen now offers an industry leading answer for applications with seismic concerns or other installations where unplanned load movement must be prevented. The design is in accordance with EHEDG requirements and is electropolished stainless steel with a hermetically sealed IP68 housing. Versions to meet ATEX and IECEx requirements are available.

CL Compression Load Cell

digital beam load cell from Eilersen
Compression Load Cell CL (CL-Ex)
The Eilersen CL digital capacitive compression load cell offers simple, clean installation for applications where seismic events or unplanned load movement is not a concern. The CL has a simple center point on which the load rests and requires no mechanical connection, mounting kits or stabilizers to protect the cell against side-loading or overloading. With capacities ranging from 50kg to 5000kg and accuracies of 0.10%, 0.05%, and 0.025%, the CL fits a wide range of applications including those in difficult environments. The design is in accordance with EHEDG requirements and is electropolished stainless steel with a hermetically sealed IP68 housing. Versions to meet ATEX and IECEx requirements are available.

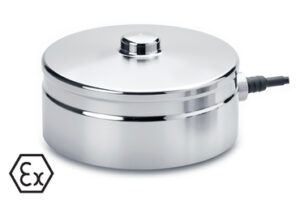

CM Compression Load Cell

digital beam load cell
Compression Load Cell CM (CM-Ex)
The CM digital capacitive compression load cell offers a higher-capacity unit with a simple, clean installation for applications where seismic events or unplanned load movement is not a concern. The CM has a simple center point on which the load rests and requires no mechanical connection, mounting kits or stabilizers to protect the cell against side-loading or overloading. Larger than the CL series compression load cell, it offers capacities ranging from 6000kg to 40,000kg and accuracies of 0.10%, 0.05%, and 0.025%, the CL fits a wide range of applications including those in difficult environments. The design is in accordance with EHEDG requirements and is electropolished stainless steel with a hermetically sealed IP68 housing. Versions to meet ATEX and IECEx requirements are available.

Hygienic Beam Load Cell

Hygienic load cell (digital)
Hygienic Beam Load Cell HBL
The Eilersen Hygienic Beam Load Cell (HBL) offers a high resonance frequency (spring rate) that provides an extremely accurate choice for rapid dynamic weighing in ranges between 5kg and 150kg. Applications include multi-head scales, combination weighers, and dosing control for bioreactors in the Life Sciences industry. Versions to meet ATEX and IECEx requirements are available.
Get quote for load cells

Load Cells for Mobile Tanks & Weighing Carts

weighing cart with load cells for bioprocessingAcuity’s mobile weighing systems, including the AccuCart™, integrate Eilersen load cells into turnkey mobile weighing solutions for accurate, precise and repeatable weight measurement without the need for frequent recalibration. Here are just a few features and benefits you can expect from our mobile weighing systems:

  • Resistant to vibration, shock and overload
  • Enhance safety by weighing in place
  • Ideal for upstream and downstream bioprocess workflows
  • No need to recalibrate when moving the cart (bump it into a wall, or roll it over a threshold—never worry about a deviation again)
  • Maximize your manufacturing space by eliminating cumbersome floor scales

About Eilersen Load Cells

Eilersen Electric A/S, headquartered in Copenhagen, Denmark, has grown significantly in response to global demand for its innovative weighing systems. Founded with a proprietary digital-capacitive technology, Eilersen remains the only company worldwide to fully master this approach.

With nearly 15% of revenue reinvested annually into R&D, Eilersen consistently launches new products and technologies to solve common industry challenges. The company’s new facility in Kokkedal, Denmark has expanded production space by nearly 500%, supporting its strong growth trajectory.

Pioneering Capacitive Measurement Technology

Originally patented in 1979, Eilersen’s capacitive weighing principle uses a non-contact ceramic sensor housed within the load cell. This allows the sensor to resist shock and extreme overloads while maintaining precise output.

As load is applied, the change in capacity at the ceramic sensor is digitally measured, creating highly stable, interference-free signals. This proprietary technology is a foundation of Eilersen’s unmatched reliability and precision and enables them to manufacture the most robust load cells in the world.

Eilersen Load Cells

The Digital Load Cell Evolution

Eilersen was a digital pioneer, transitioning from analog in the mid-1990s. Since then, continual innovation in processors and software has made Eilersen load cells Industry 4.0-ready, with built-in intelligence in every unit.

With over 15 models available, Eilersen’s load cells serve applications ranging from 0.1 grams to 500 tons. Constructed from stainless steel, laser-welded, and sealed to IP68 standards, they offer unmatched durability—even tolerating overloads up to 10x capacity.

Available Certifications:

  • OIML
  • ATEX
  • IECEx

Eilersen provides a complete weighing solution—including load cells, instrumentation, and control software—all manufactured, calibrated, and assembled in-house.

Eilersen & Acuity: A Trusted Partnership

As Eilersen’s exclusive North American partner for the Life Sciences, Acuity Process Solutions brings these world-class technologies to leading companies across the region.

Our close collaboration with Eilersen ensures:

  • Access to the latest innovations and product updates
  • Custom engineering support for unique installations
  • Seamless integration and on-site assistance

Together, Eilersen and Acuity deliver a leading combination of cutting edge products and expert service. Learn more about our partnership.

Ready to Specify the Perfect Load Cell?

Let our weighing experts help you find the right Eilersen digital load cell for your unique process.
