In platform scales, filling stations, and OEM equipment, off-center loading is one of the most common sources of measurement error. Single-point load cells eliminate this issue by maintaining accuracy regardless of where the load is applied across the platform.
For applications where footprint, clean integration, and repeatable accuracy matter, they provide a simplified and reliable alternative to multi-load-cell configurations.
Why Choose Single Point Load Cells?
In compact weighing systems, space is rarely the only constraint. Load placement varies, operators work quickly, and the weighing point has to stay accurate without adding unnecessary complexity. Eilersen single-point load cells are designed to solve that combination of challenges.
- True off-center load compensation across the platform
- Stable, drift-resistant digital output
- High overload tolerance for demanding environments
- Simplified integration with minimal calibration requirements
The result is a cleaner weighing architecture with dependable accuracy and less time spent on adjustment and maintenance.
Eilersen Single-Point Load Cell Models

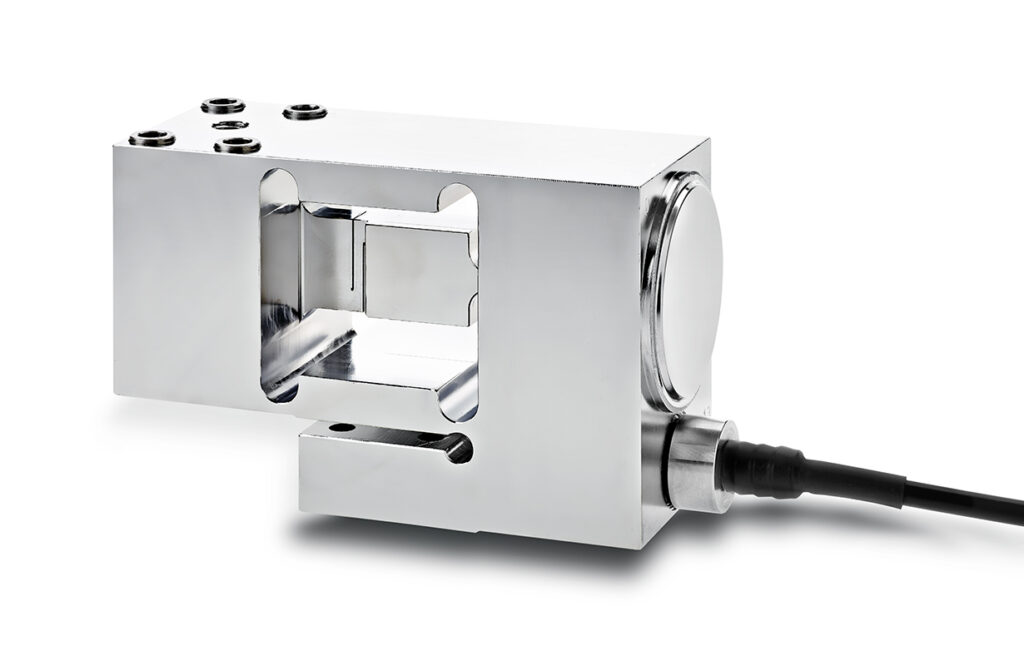

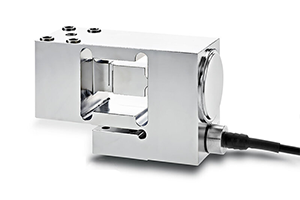

SPSX (SPSX-Ex)
Type:
SPSX (Non-ATEX)
SPSX-Ex (ATEX)
Capacity (Emax):
5, 10, 20, 30, 50, 100, 150, 200 kg
Accuracy:
Industrial 0.025%, Precision 0.015%, High Precision 0.010%
Overload Tolerance:
Up to 1000% of rated capacity

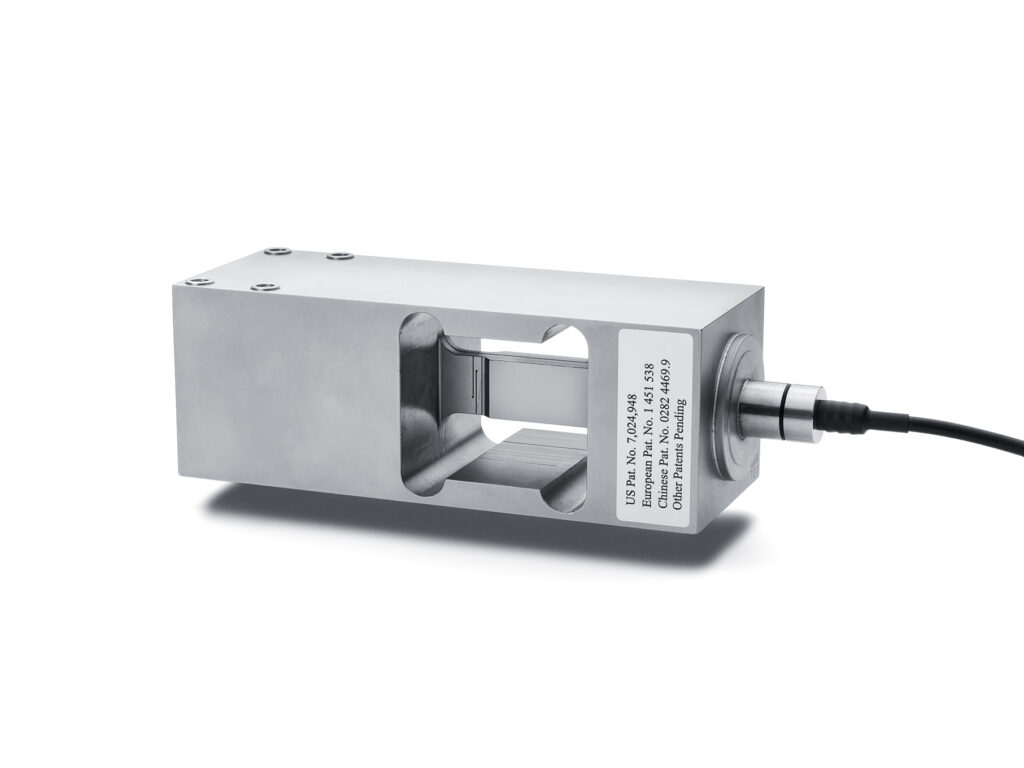

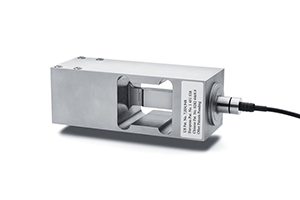

SPSXL (SPSXL-Ex)
Type:
SPSXL (Non-ATEX)
SPSXL-Ex (ATEX)
Capacity (Emax):
20, 30, 50, 100, 150, 200, 250, 300 kg
Accuracy:
Industrial 0.025%, Precision 0.015%
Overload Tolerance:
Up to 1000% of rated capacity

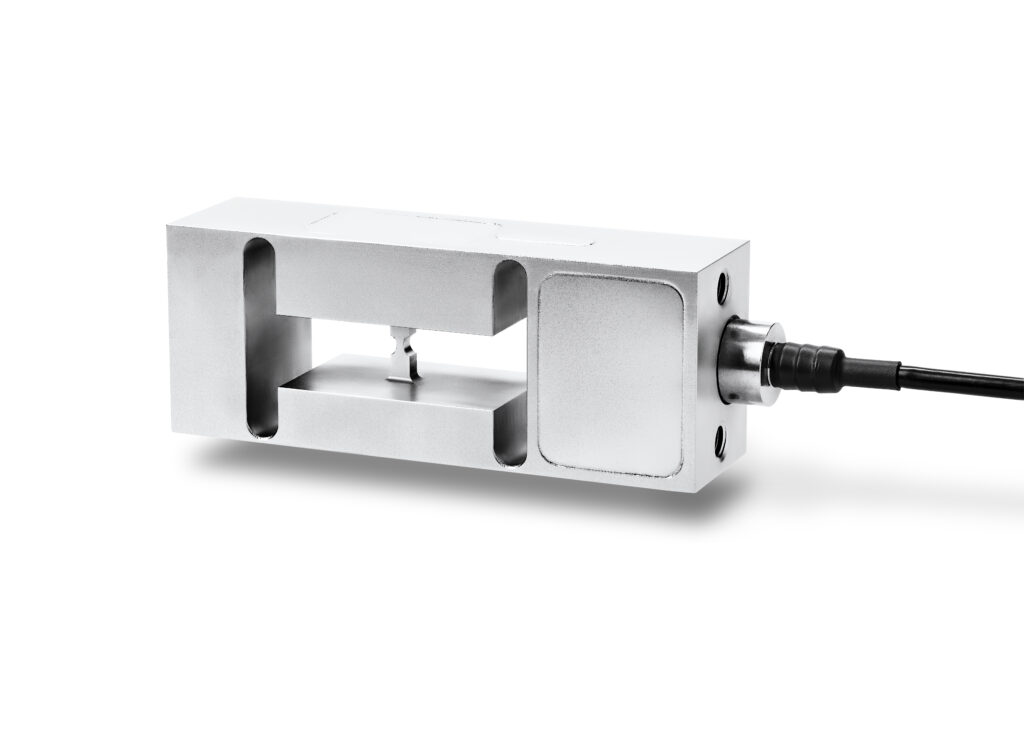

XBL (XBL-Ex)
Type:
XBL (Non-ATEX)
XBL-Ex (ATEX)
Capacity (Emax):
3, 5, 10, 15, 20, 30, 50, 100 kg
Accuracy:
Industrial 0.025%, Precision 0.015%, High Precision 0.010%
Overload Tolerance:
Up to 1000% of rated capacity
Best-fit applications
- Platform and bench scales requiring consistent accuracy across the entire surface
- Filling and dispensing systems where uneven loading is common
- OEM equipment where footprint and integration simplicity are critical
- Workstations and operator-driven processes with unpredictable load placement
Key considerations
- Platform dimensions and expected load distribution patterns
- Required accuracy under off-center loading conditions
- Environmental requirements (washdown, hygienic design, IP rating)
- Integration with indicators, PLCs, or automated control systems
- Mechanical constraints including mounting, stops, and overload protection
Select the Right Single Point Load Cell
Contact our team to find the optimal single-point load cell for your application.
